Drawings
Specs
| Model No. | Boundary Dim (mm) |
Mounting Dim (mm) |
Basic load rating |
Mass |
PCD1 (mm) |
Inner ring Mounting holes (mm) |
PCD2 (mm) |
Outer ring Mounting holes (mm) |
|||||
|
Inner Ф |
Outer Ф |
Width | |||||||||||
| C | Co | ||||||||||||
| d | D | B | rmin | da | Da | kN | kN | kg | |||||

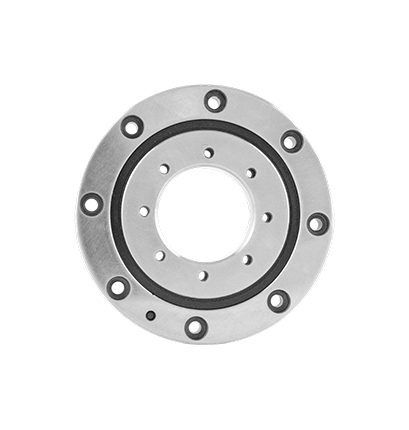

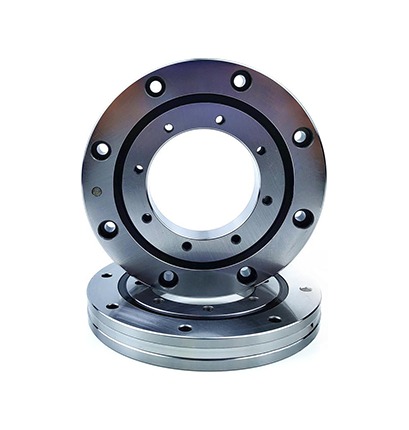

| CRBTF 205 AT | 20 | 53 | 5 | 0.15 | 31.50 | 38.00 | 1.89 | 2.15 | 0.066 | 26 | 6-M2.5 through | 45 | 6-Ф2.9 through Ф5.5 counter bore depth 2.8 |
