XSI Series crossed roller bearings_Luoyang TongKang Precision Bearing Co., Ltd.

HOME > XSI Series

Model No.	Boundary Dim (mm)					Runout tolerance (mm)				Basic load rating (axial kN)		Basic load rating (radial kN)		Mass
	Boundary Dim (mm)					Runout tolerance (mm)				Basic load rating (axial kN)		Basic load rating (radial kN)		Mass
	Inner Ф d	Outer Ф D	Width H	PCD1	PCD2	Kea	Kia	Sia	Sea	Ca	Coa	Cr	Cor	kg


XSI 140414	325	484	56	460	375	0.06	0.06	0.04	0.04	229	520	146	250	31
XSI 140544	444	614	56	590	505	0.07	0.07	0.04	0.04	270	680	170	330	43
XSI 140644	546	714	56	690	605	0.08	0.08	0.05	0.05	290	800	185	395	50
XSI 140744	648	814	56	790	705	0.08	0.08	0.05	0.05	315	930	200	445	58
XSI 140844	736	914	56	890	805	0.09	0.09	0.05	0.05	340	1050	215	510	69
XSI 140944	840	1014	56	990	905	0.09	0.09	0.06	0.06	360	1170	227	580	76
XSI 141094	984	1164	56	1140	1055	0.11	0.11	0.07	0.07	390	1360	246	670	91

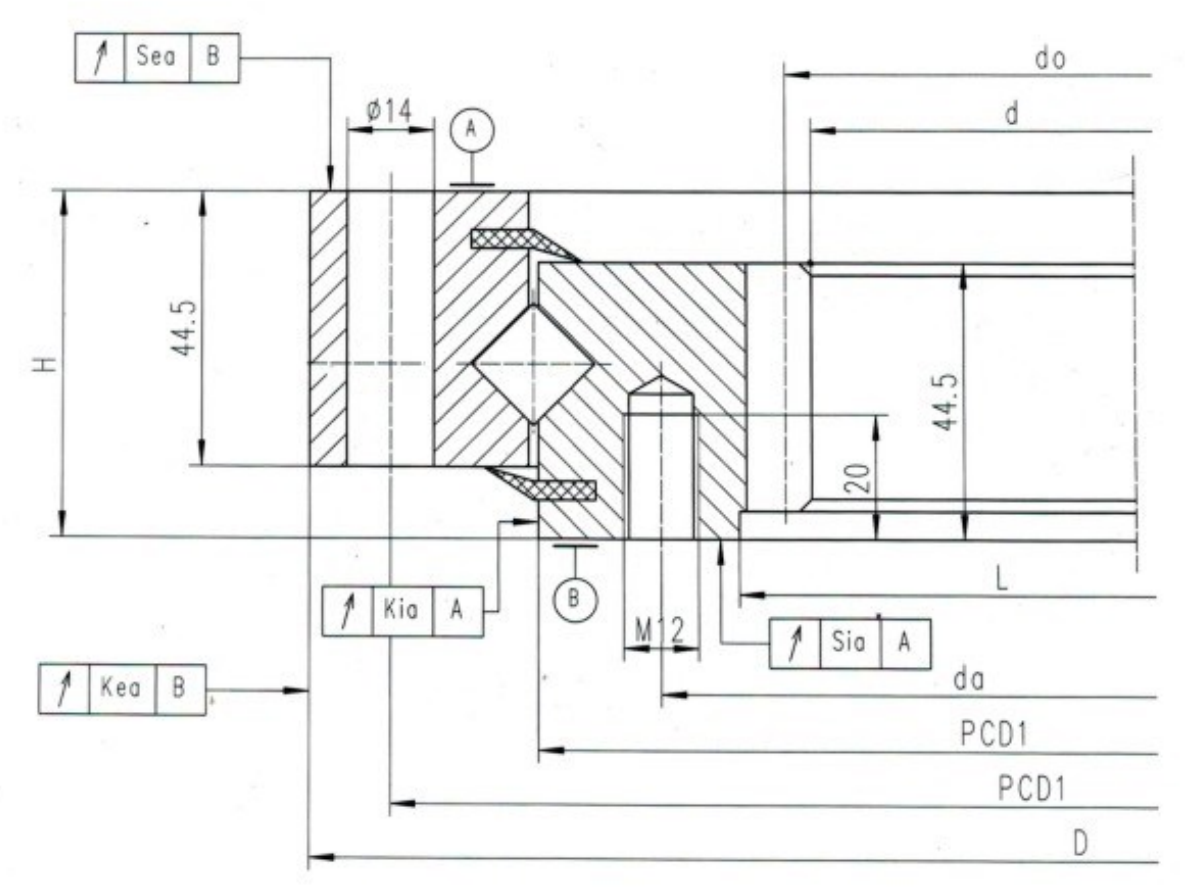

Internal Gear Crossed Roller Slewing Bearing (XSI14 Series)

If higher bearing rotational accuracy is required, please contact us.
