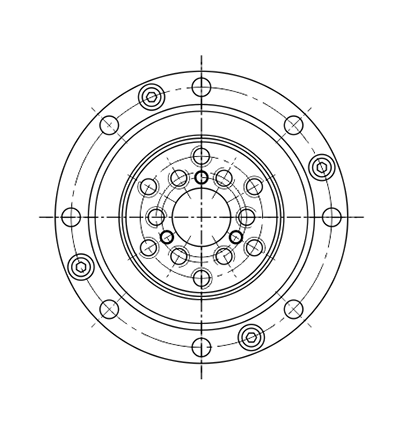

Drawings
Specs
| Model No. | Boundary Dim(mm) | Outer ring(mm) | Inner ring(mm) | Basic load rating(kN) | ||||||||||||||
| d | D | H | C | B | H2 | D1 | D2 | d1 | d2 | dm | Mounting holes | dn | Mounting holes | dL | Mounting holes | Cr | Cor | |
| CSF-32 | 26 | 112 | 22.5 | 21.5 | 19 | 4.5 | 90 | 68 | 74 | 68.6 | 104 | 16-Ф4.5 | 55 | 8-M10 | 40 | 8-M10 | 12.5 | 35.6 |
