Drawings
Specs
| Model No. | Boundary Dim (mm) | Mounting holes | Basic load rating (kN) | Mass | ||||||||||||
| Da | di | Ha | hi | Di | da | La(mm) | nB 1) | dB(mm) | ds(mm) | ts(mm) | Ca | Coa | Cr | Cor | kg | |

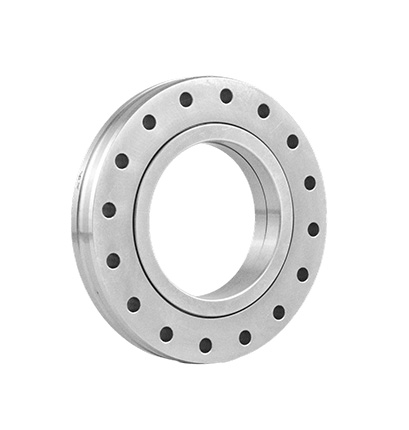

| XV50 | 100 | 50 | 16 | 17 | 64.5 | 63.5 | 85 | 12 | 5.6 | 10 | 5.4 | 20.6 | 54 | 13.1 | 21.5 | 0.67 |
